Bosch Performance CX motor for E-Bikes
Efficient energy use
Optimal motor and transmission performance for tackling long, steep climbs.
Always at maximum power
Ideal for quick intermediate sprints and sudden changes of pace.
Low noise level
For quiet riding with high motor power at all pedaling speeds.
Motor torque 85 Nm
For powerful acceleration in a compact format.
Maximum assistance 340%
For powerful propulsion, extremely sporty riding and fast sprints.
Maximum speed 25 km/h
Continuous assistance up to 25 km/h, even on long mountain rides.
FRAME KIT

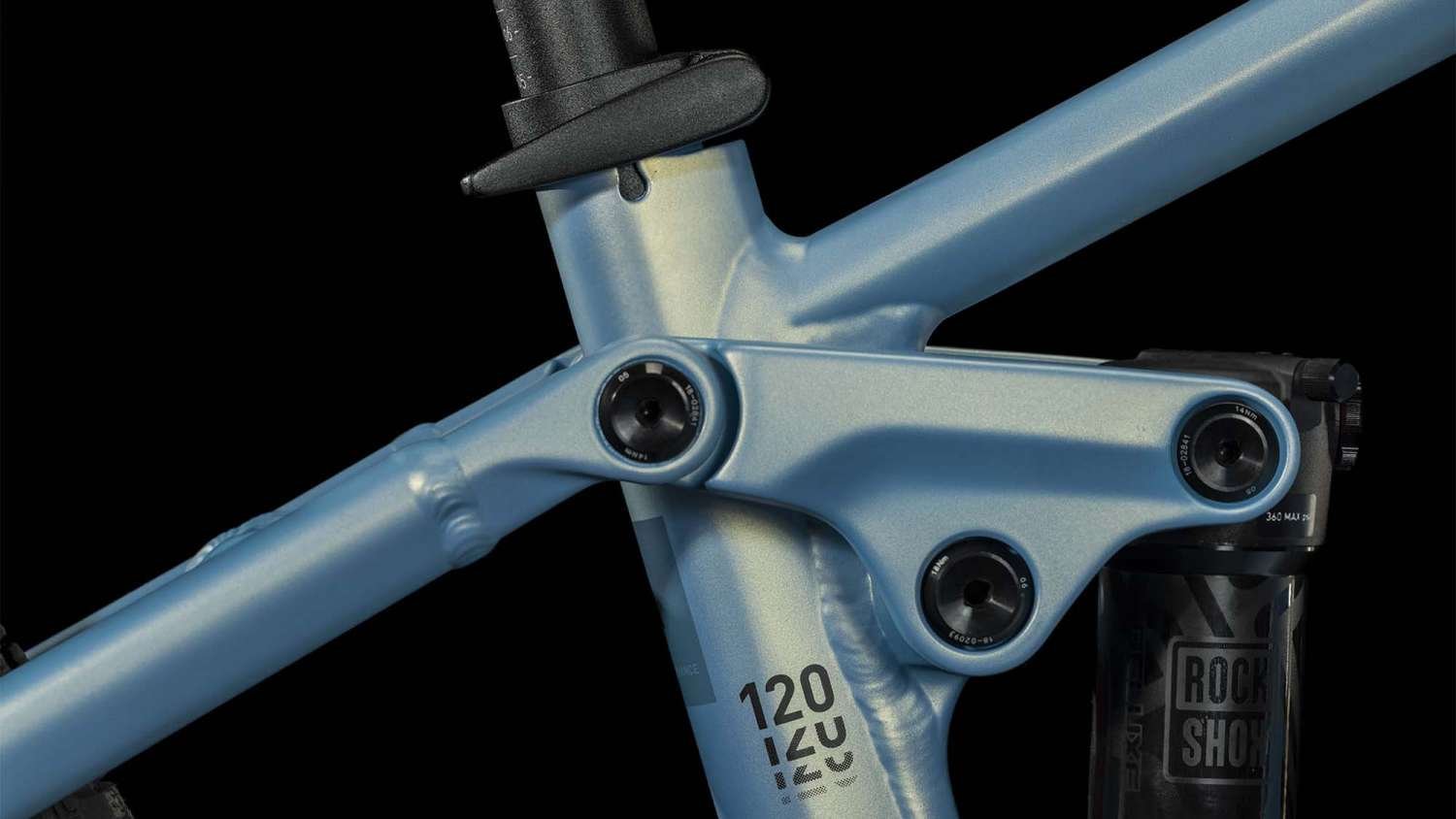

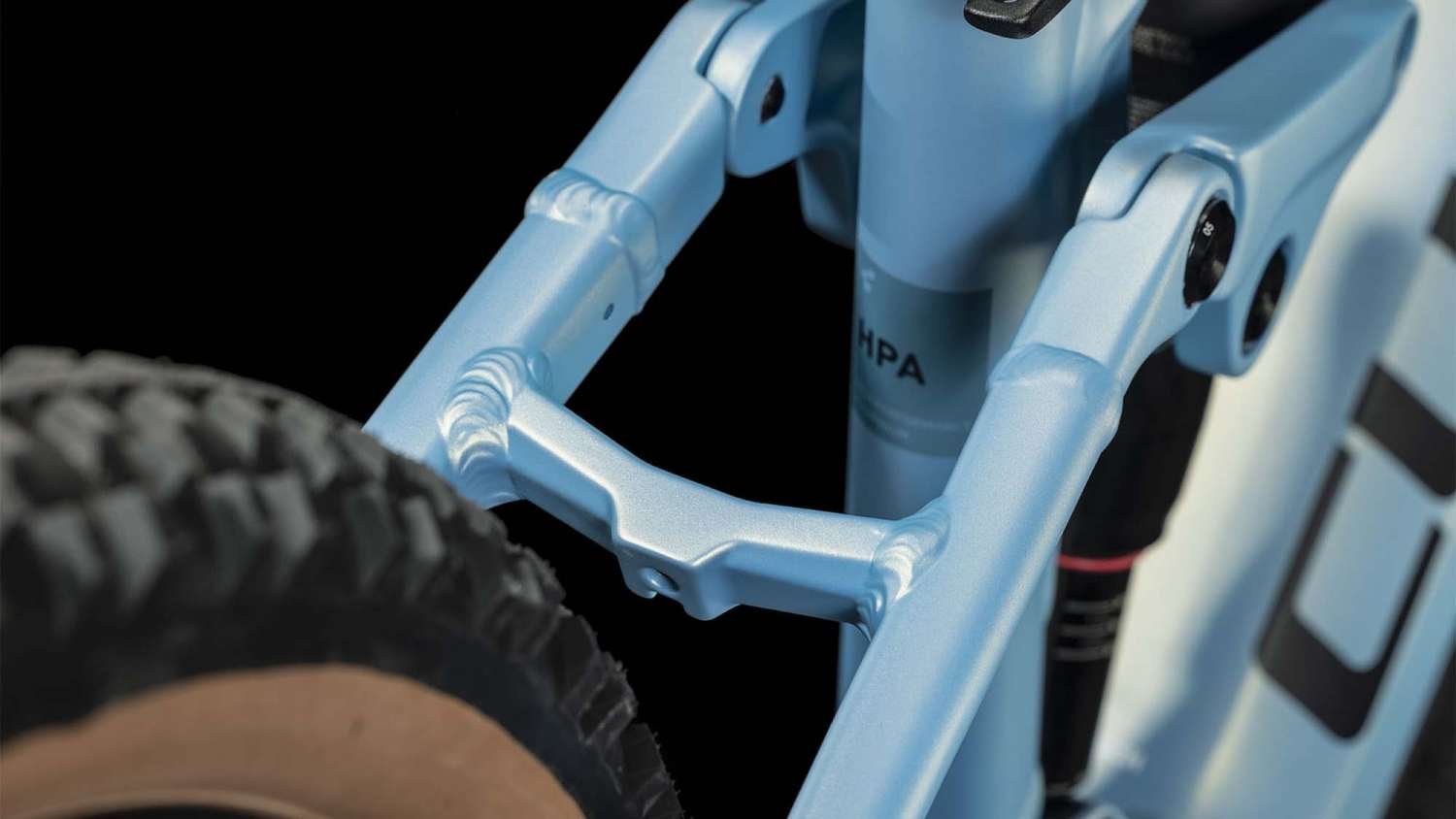

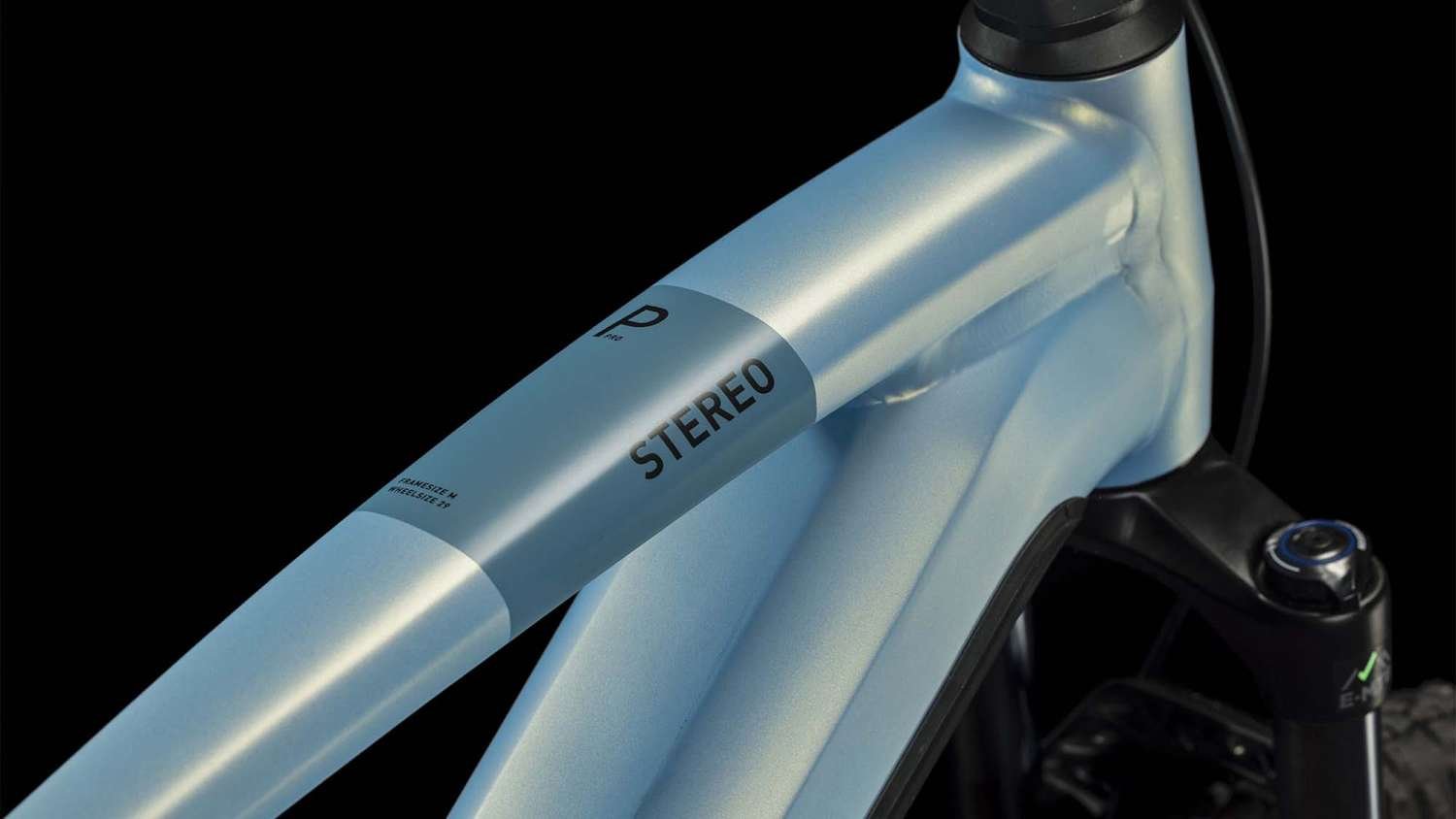

Frame: Superlite aluminum, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully integrated battery, Advanced internal cable routing, Kickstand/fender/rack mounts
Sizes: Size Split: 27.5: S (16“) // 29: M (18”), L (20“), XL (22”)

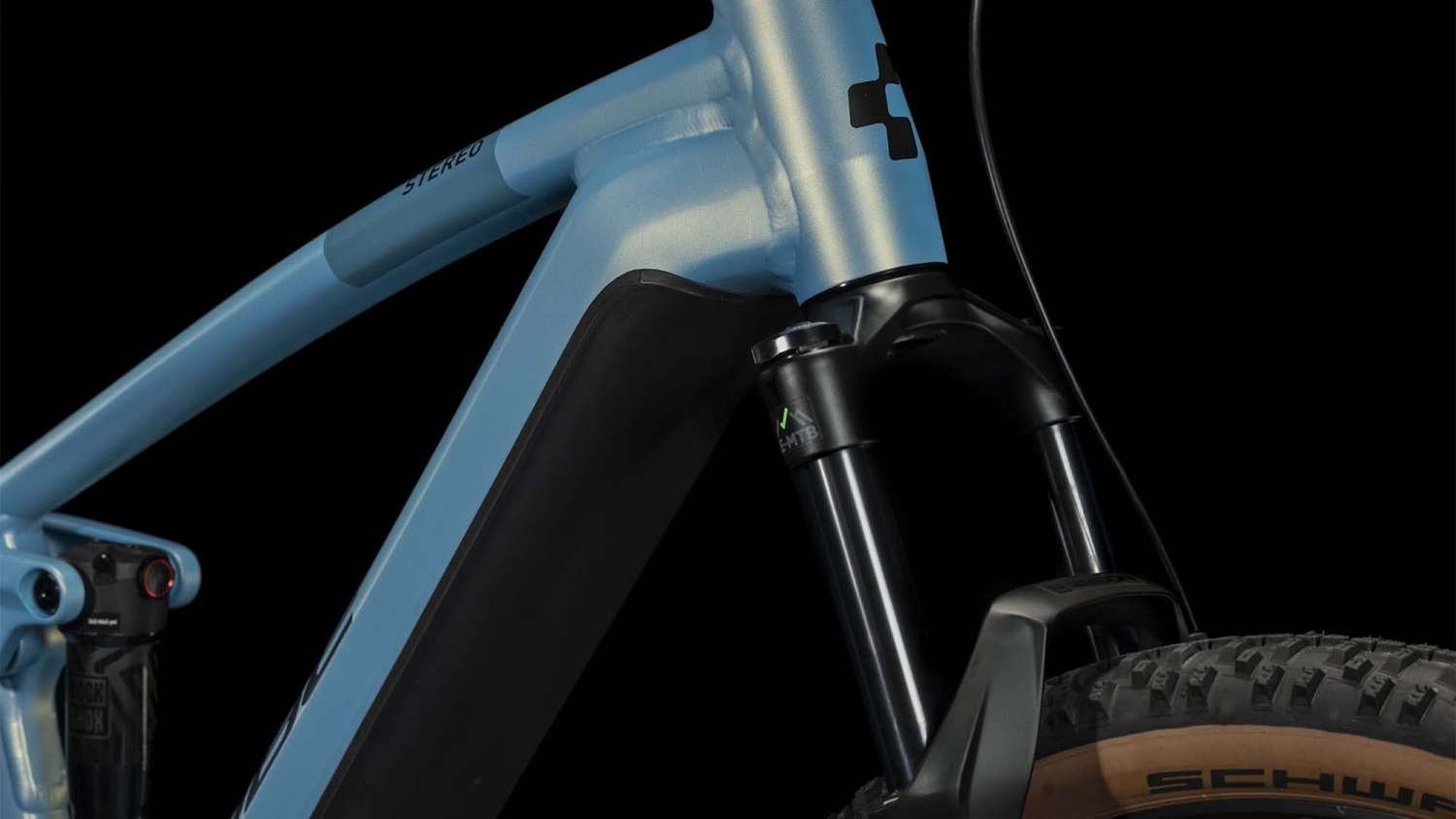

Fork: RockShox Recon Silver RL Air, tapered, 15×110 mm, eMTB approved, 130 mm, with lockout

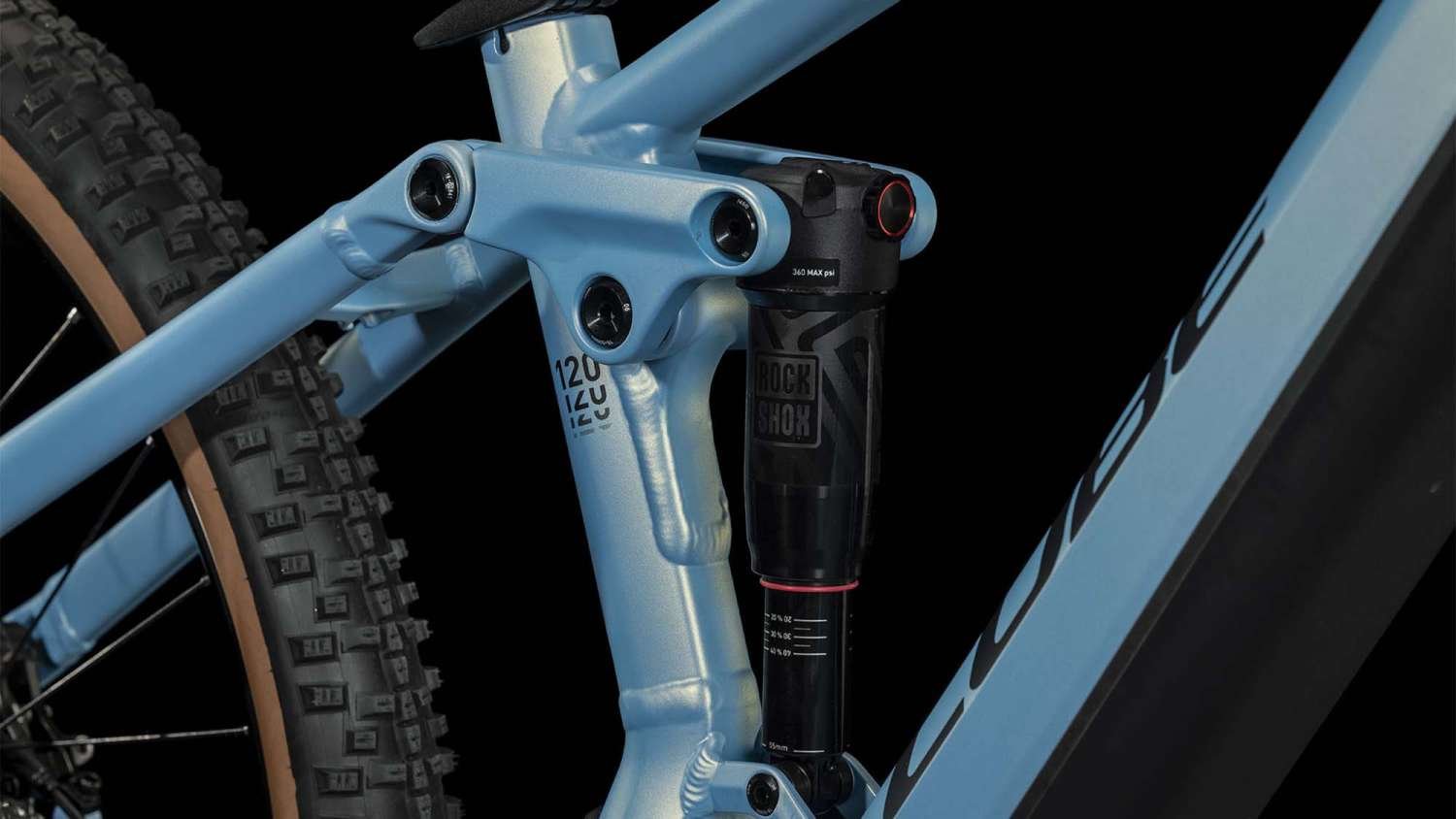

Shock: RockShox Deluxe Select, 185×55 mm (27.5: 165×45 mm), rebound adjustment, Trunnion mount
Shock hardware: Upper: Trunnion mount 54 mm / Lower: 30×8 mm
Headset: ACROS AZF-1035, ICR (integrated cable routing), BlockLock 120°, Zero-Stack upper 1 1/2“ (ZS 56 mm), Zero-Stack lower 1 1/2” (ZS 56 mm)
EQUIPMENT
Handlebar stem: CUBE Performance Stem E-MTB, 31.8 mm
Handlebar: Newmen Evolution SL 318.25, 760 mm
Grips: ACID Hybrid Perform
Pedals: ACID PP MTB
Saddle: Natural Fit Sequence
Seat post: CUBE Performance Post, 30.9 mm
Seat clamp: CUBE Screwlock Semi Integrated with hidden tool, 36 mm
DRIVETRAIN
Rear derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12 speeds
Shift lever: Shimano Deore SL-M6100-IR, direct mount, Rapidfire-Plus
Crankset: ACID E-Crank, 38 teeth, 170 mm
Cassette: Sunrace CSMZ600, 11-51 teeth
Chain: Shimano CN-M6100
E-BIKE ELECTRICAL SYSTEM
Motor: Bosch Drive Unit Performance CX Generation 4 (85 Nm) Cruise (250 Watt), Smart System
Battery: Bosch PowerTube 625
Battery charger: Bosch 4A
Control: Bosch LED Remote
WHEELS
Rims: Rodi Tryp 30, 32 holes, disc, Tubeless Ready
Front hub: Shimano HB-MT400-B, 15 mm, Boost, Centerlock
Rear hub: Shimano FH-MT410-B, 12 mm, Boost, Centerlock
Tires: Schwalbe Smart Sam, Active, 2.6
BRAKES
Brakes: Shimano BR-MT420, hydraulic disc brakes (203/203 mm)
ADDITIONAL INFORMATION
Weight: 25.1 kg
Please note:
- 16 inches = 27.5“ wheels
- 18, 20, 22 inches = 29” wheels

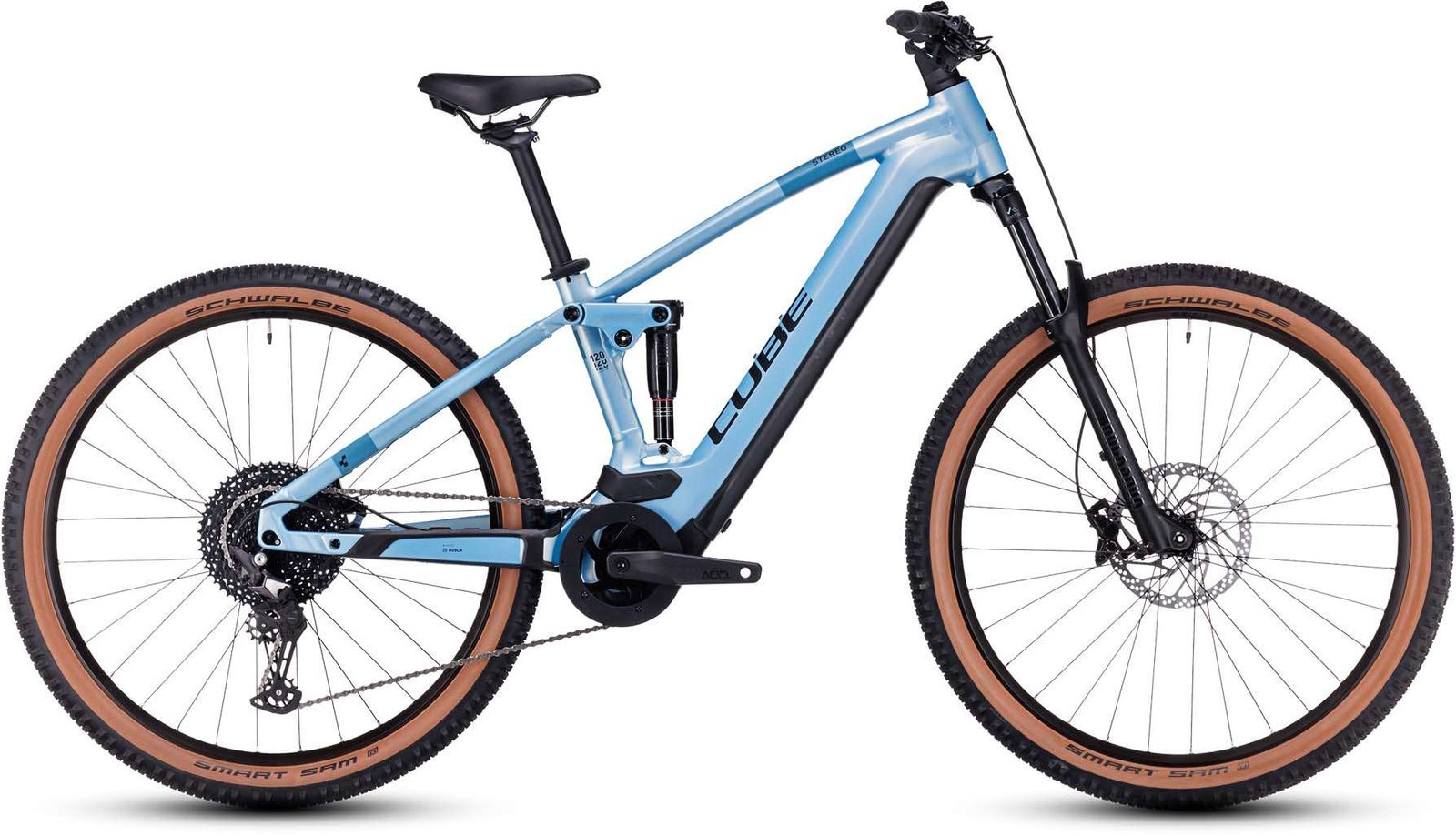

Bike type: E-bike, full-suspension MTB
Display: Bosch LED Remote
User: Unisex
Frame material: Aluminum
Wheel size: 27.5” / 29”
Motor: Bosch Performance CX
Battery: 625 Wh
Model year: 2023
