TECHNICAL SPECIFICATIONS
Bosch Performance CX E-Bike Motor
Efficient energy use
Optimal motor and transmission performance for tackling long, steep climbs.
Always at maximum power
Ideal for quick intermediate sprints and sudden changes of pace.
Reduced noise level
For quiet riding with high motor power at all pedaling frequencies.
Torque of 85 Nm
For powerful acceleration in a compact format.
Maximum support of 340%
For powerful thrust, extremely sporty riding and explosive acceleration.
Maximum speed: 25 km/h
Constant assistance up to 25 km/h, even on long mountain rides.

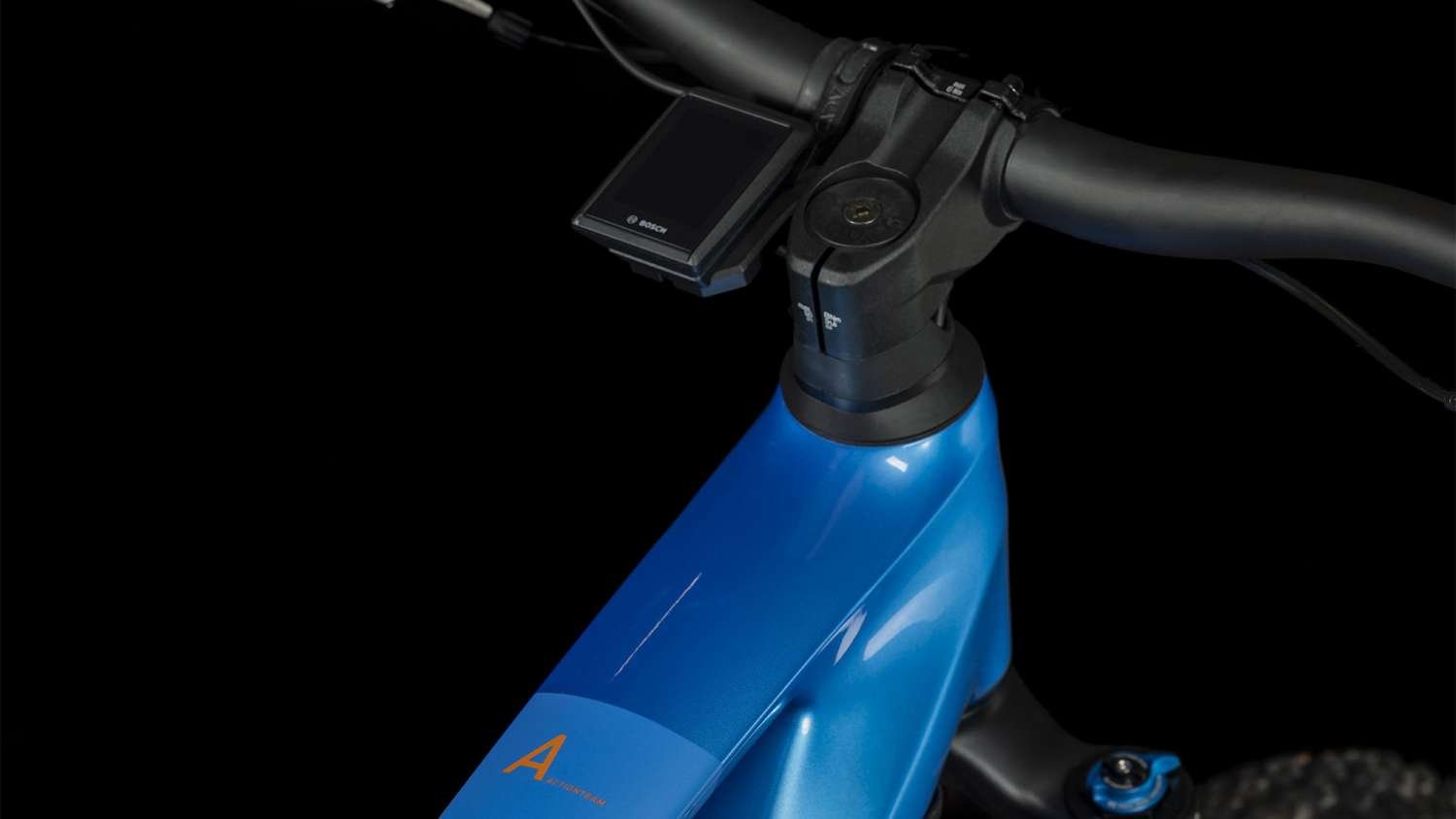

Bosch Kiox 300 display
Smart and practical functions
The robust display is the ideal companion for sporty excursions, monitoring fitness data, and optimizing your training. The Kiox 300 is always up to date thanks to over-the-air updates and is continuously enhanced with new features via the eBike Flow app.
Easy to read, elegant design
Compact but powerful. The Kiox 300 has a color display that is perfectly readable both during the day and at night. Control via the LED Remote is intuitive and accompanied by clear animations and images. Splash and dust resistant.
Useful support
Activate Walk Assist mode with the LED Remote to get help on climbs. The display clearly shows the remaining range in each mode, helping you choose the most suitable one to complete your route.
Customizable positioning
The mount allows for custom positioning on the handlebar with adjustable angle.
eBike Flow app – Enjoy a personalized eBike experience!
With the app, you can download new features and updates via Bluetooth. Track your activities, sync your data with Apple Health, and customize your riding modes (Eco, Tour, Sport, Turbo).
Keep everything under control
The main screen shows you the battery status, remaining range, distance traveled, and next maintenance.
FRAME
Frame: C:62® Monocoque Advanced Twin Mold Technology, 6061 T6 aluminum rear triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, integrated battery, advanced internal cable routing
Fork: Fox 38 Float Factory FIT4, 3 positions with compression adjustment, tapered, 15x110mm, eMTB optimized, 170mm, Kashima coating
Shock absorber: Fox Float X Factory, 205x65mm, LSC adjustment, Trunnion Mount, Kashima coating
Shock mounts: upper 54mm, lower 22.2x8mm
Headset: ACROS AZF-1035, ICR, BlockLock 120°, ZS56/ZS56
COMPONENTS
- Handlebar stem: CUBE Performance Stem E-MTB, 31.8mm
- Handlebar: Newmen Advanced 318.25 in carbon, 780mm
- Grips: ACID Disrupt, Soft Compound

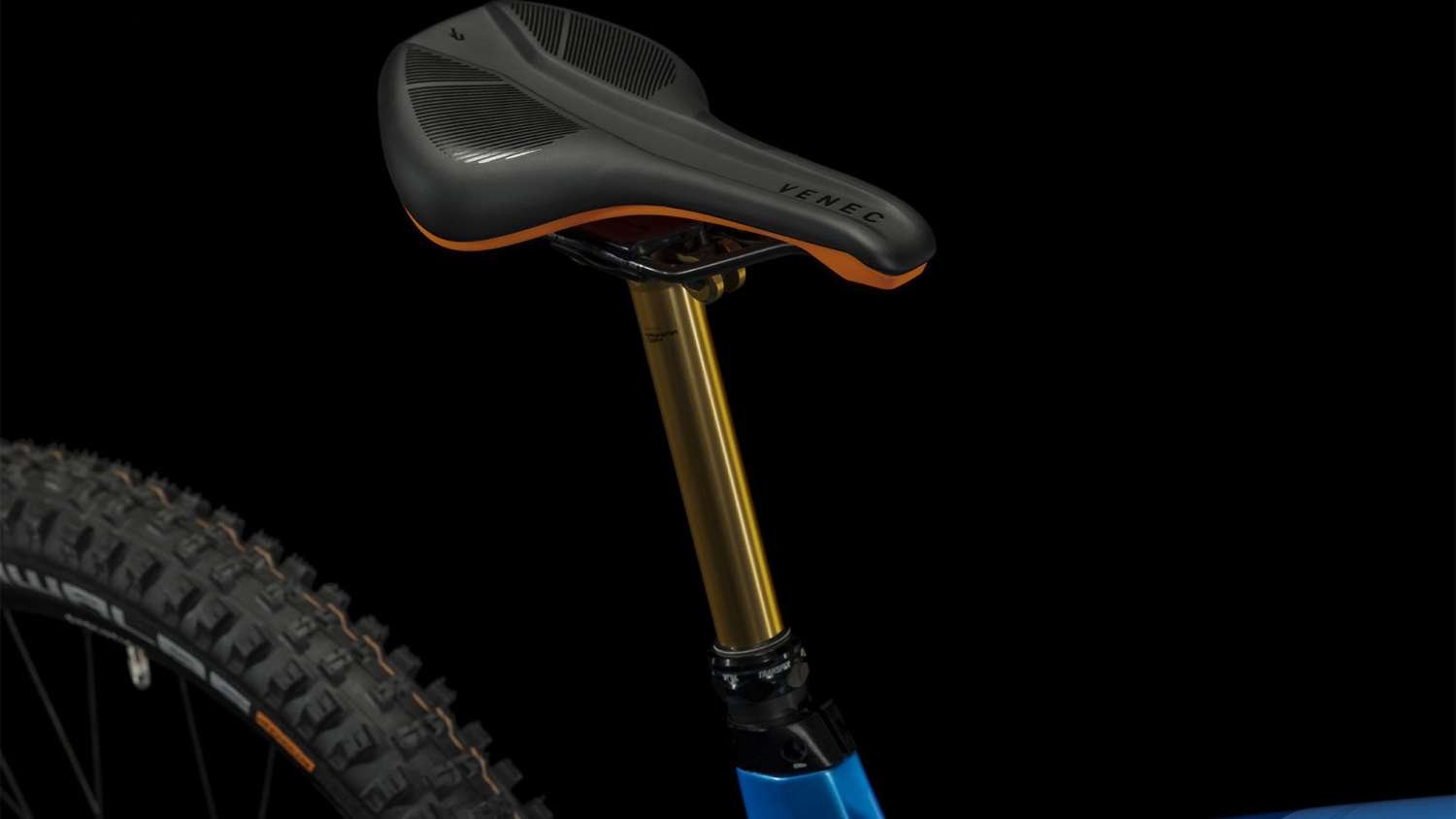

- Saddle: Natural Fit Venec
- Seatpost: Fox Transfer Factory 31.6mm, Kashima coating
- Seatpost collar: CUBE Screwlock Semi Integrated, 34.9mm
DRIVETRAIN
- Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12 speeds
- Shift lever: Shimano XT SL-M8100-IR, Direct Attach
- Chain guide: Reverse Flip-Guide E-Chain Guide, direct mount, GEN4

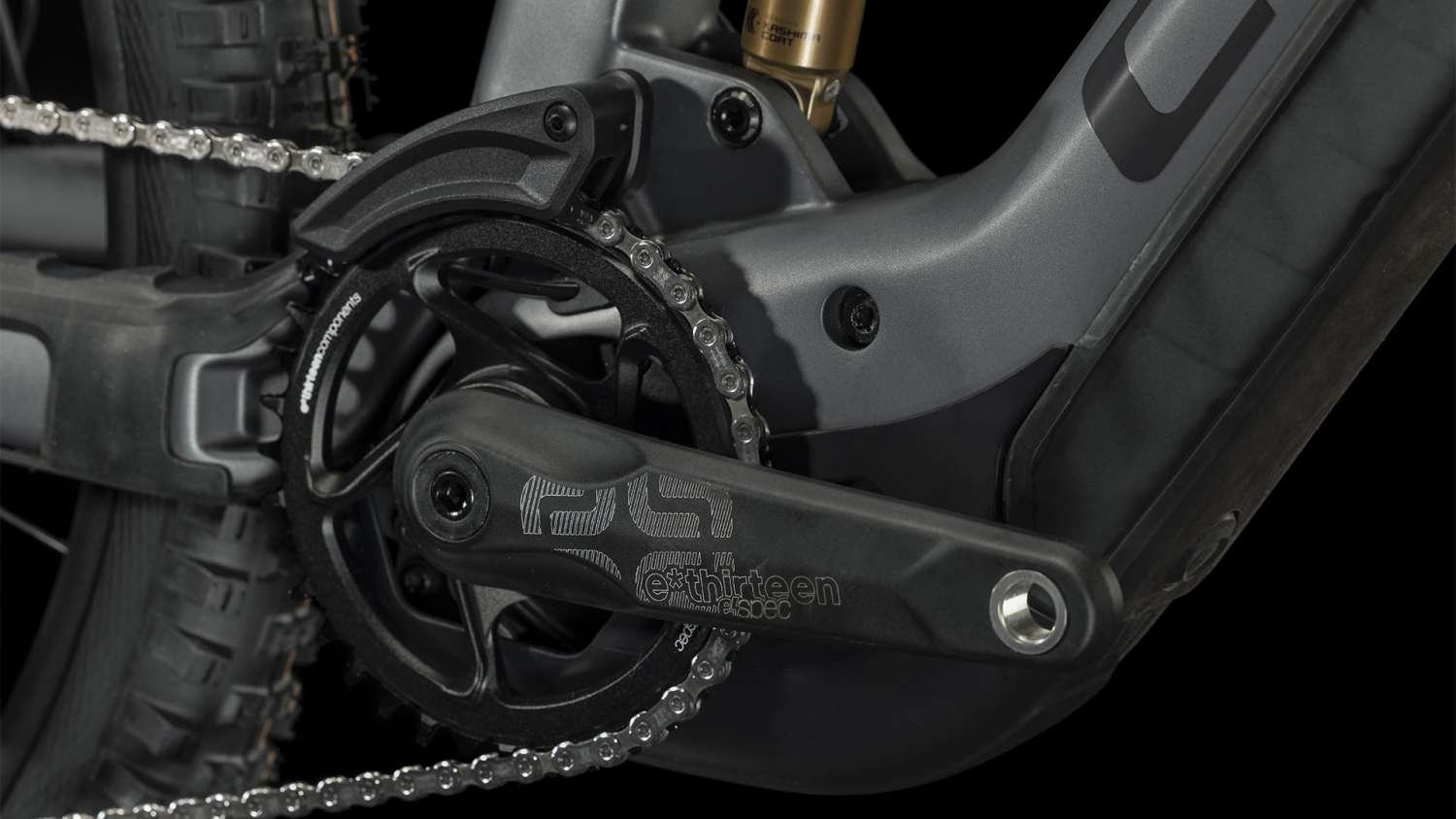

- Crankset: e*thirteen Plus Crank, 165mm, 36T
- Cassette: Shimano XT CS-M8100, 10-51T
- Chain: Shimano XT CN-M8100
ELECTRICAL SYSTEM
- Motor: Bosch Performance CX Gen 4 (85Nm), Cruise (250Watt), Smart System
- Battery: Bosch PowerTube 750
- Charger: Bosch 4A
- Control: Bosch LED Remote
- Display: Bosch Kiox 300
WHEELS
- Rims: Newmen Evolution SL E.G. 30, 28 spokes, tubeless ready
- Front hub: 15x110mm Boost
- Rear hub: 12x148mm Boost
- Front tire: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4“
- Rear tire: Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4”
BRAKES
- Brakes: Shimano XT BR-M8120, hydraulic disc brakes (203/203mm)
GENERAL
- Weight: 24.2 kg
- Maximum supported weight: 160 kg
- Type: Full suspension E-MTB
- Display: Bosch Kiox 300
- Frame: Carbon
- Wheels: 27.5″
- Model year: 2023
- Motor: Bosch Performance CX
- Battery: 750Wh
SIZE GUIDE
- 16″ (S) → Height: 160 – 168 cm
- 18″ (M) → Height: 168 – 178 cm
- 20″ (L) → Height: 178 – 188 cm
- 22″ (XL) → Height: over 188 cm
