Bosch Performance CX E-Bike Motor
Efficient energy use
Optimal motor and transmission performance for tackling long, steep climbs.
Always at maximum power
Ideal for quick intermediate sprints and sharp changes of pace.
Low noise level
For quiet riding with high motor power at all pedaling speeds.
85 Nm motor torque
For powerful acceleration in a compact format.
Maximum assistance of 340%
For powerful thrust, extremely sporty riding, and quick sprints.
Maximum speed 25 km/h
Continuous assistance up to 25 km/h, even on long uphill rides.

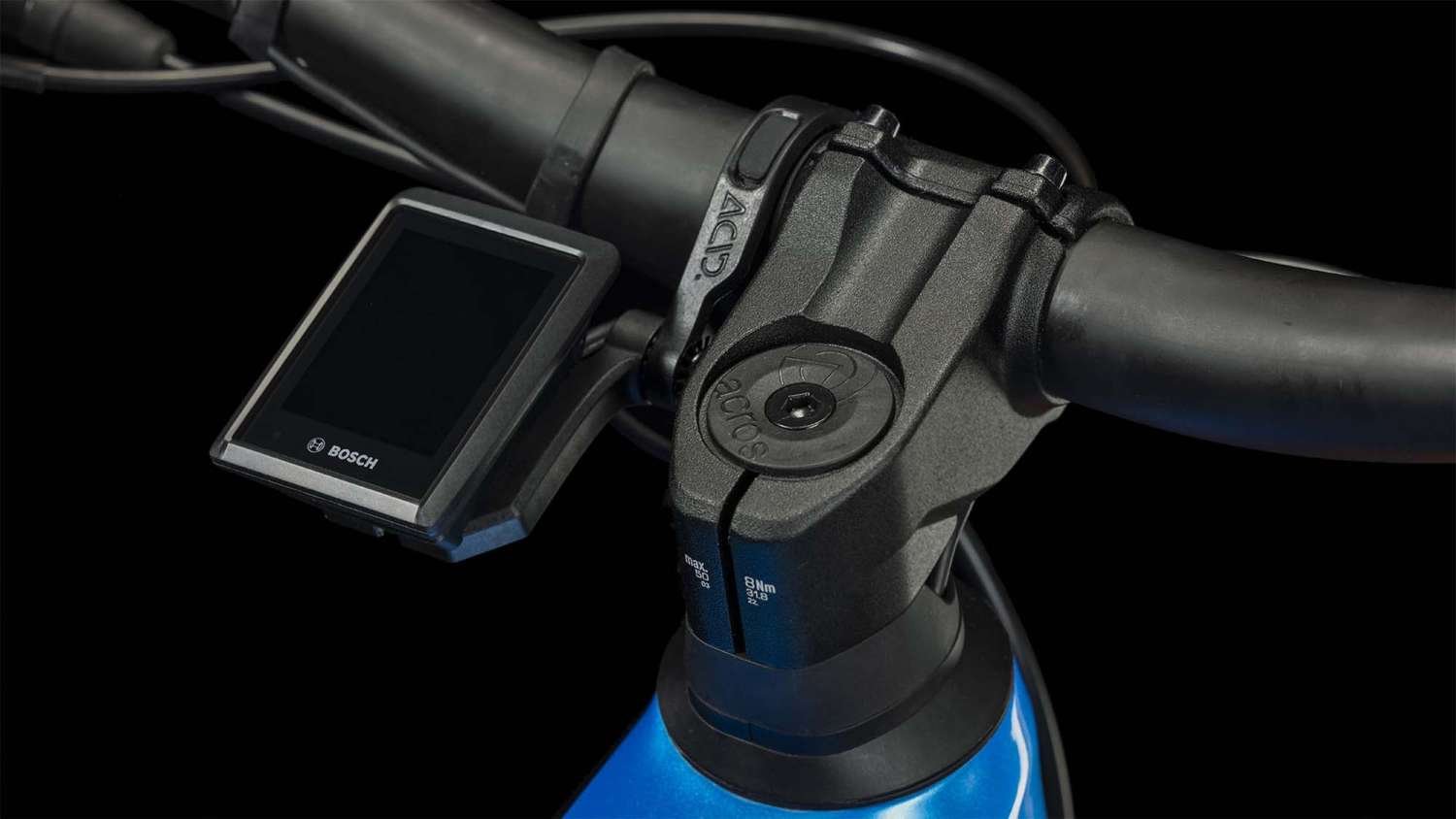

Bosch Kiox 300 display
Exciting features
The robust display is the ideal companion for sporty tours, monitoring fitness data and optimising your training. Kiox 300 is always up to date thanks to wireless updates and is constantly enhanced via the eBike Flow app.
Easy to read, stylish design
Compact but powerful. The Kiox 300 features a color display that is easy to read both during the day and at night. Operation via the LED Remote is intuitive, with animations and images. Protected against splashes and dust.
Helpful assistance
Thanks to the Walk Assist function, which can be activated from the LED Remote, you can easily tackle climbs on foot. The display shows the remaining range for each mode, allowing you to plan efficiently.
Customizable positioning
The mount allows you to position the display according to your needs, with adjustable tilt for optimal visibility.
eBike Flow app – Create a personalized experience
Update components such as the battery and motor via Bluetooth. You can record your routes, sync with Apple Health (for iPhone users) and customize your riding modes (Eco, Tour, Sport, Turbo).
Riding modes
- Turbo: maximum assistance for sporty riding.
- Sport/eMTB: powerful support for every situation.
- Tour: constant assistance for long journeys.
- Eco: efficient support for maximum range.
- Off: no assistance, all display functions active.

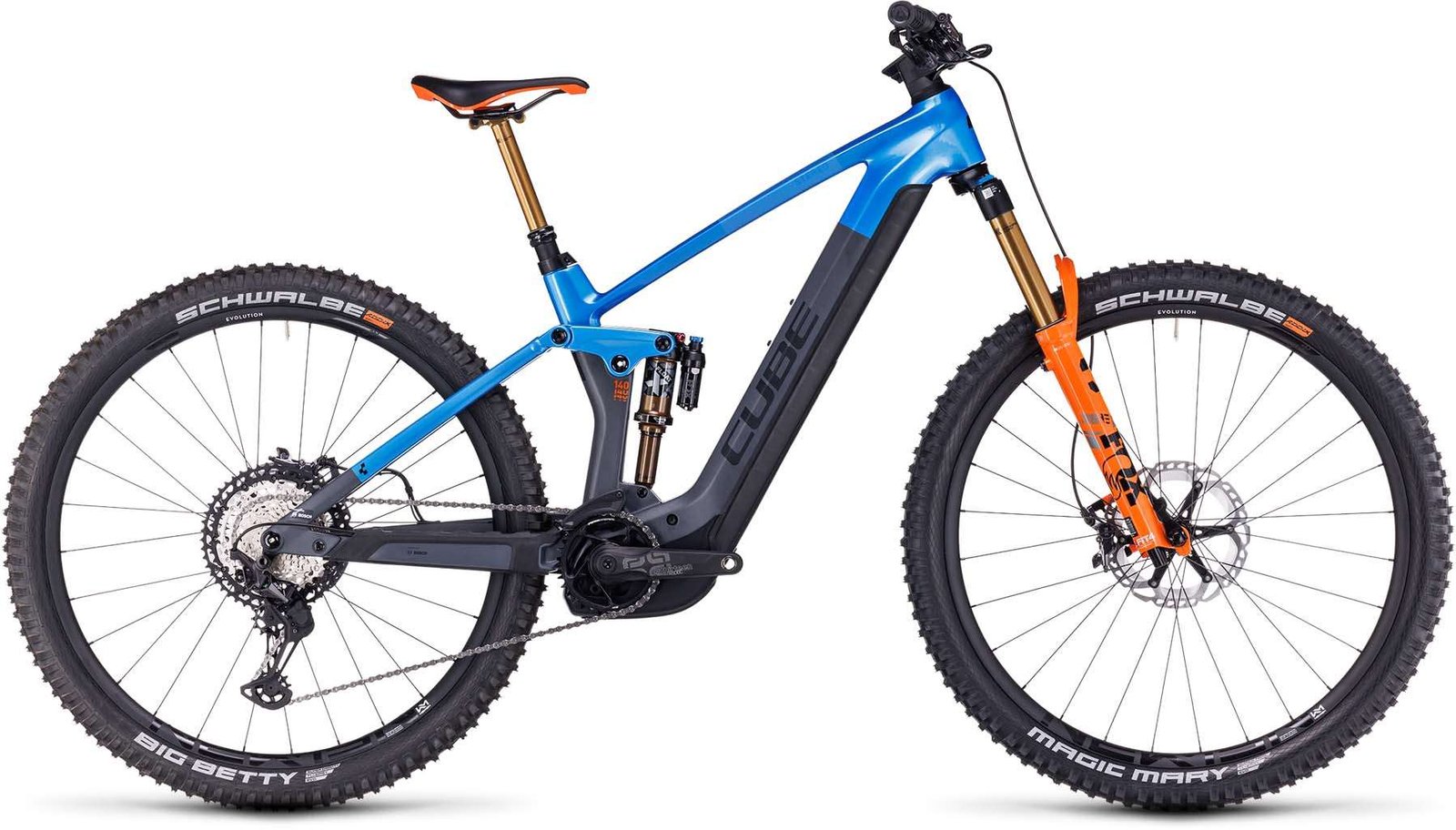

FRAME

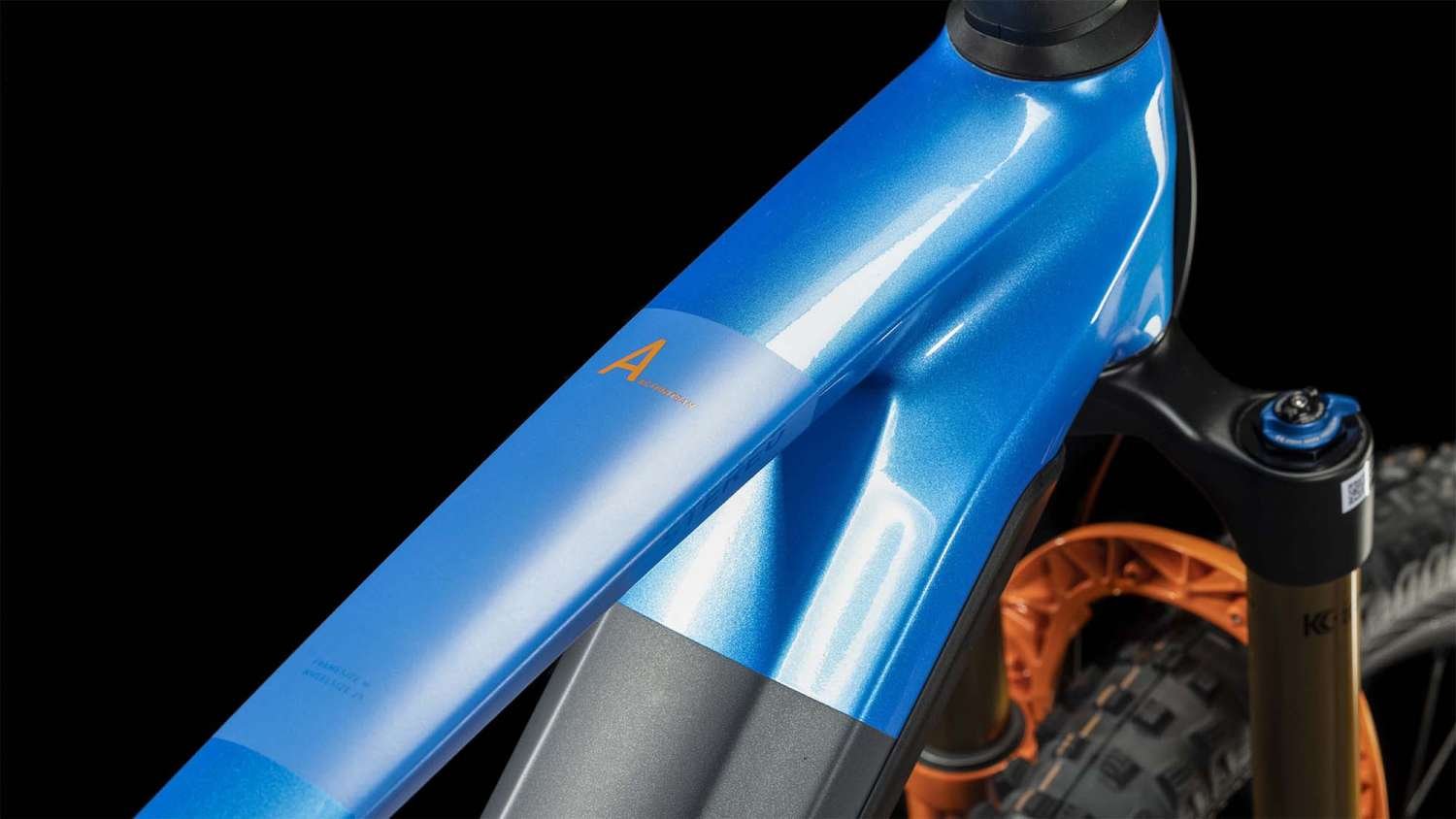

Frame: C:62® Monocoque Advanced Twin Mold Technology, 6061 T6 aluminum rear triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, fully integrated battery, advanced internal cable routing
Available sizes: Size Split: 27.5: S (16“) // 29: M (18”), L (20“), XL (22”)
Fork: Fox 36 Float Factory FIT4, 3 positions with low-speed compression adjustment, tapered, 15x110mm, optimized for eBikes, 150mm, Kashima coating

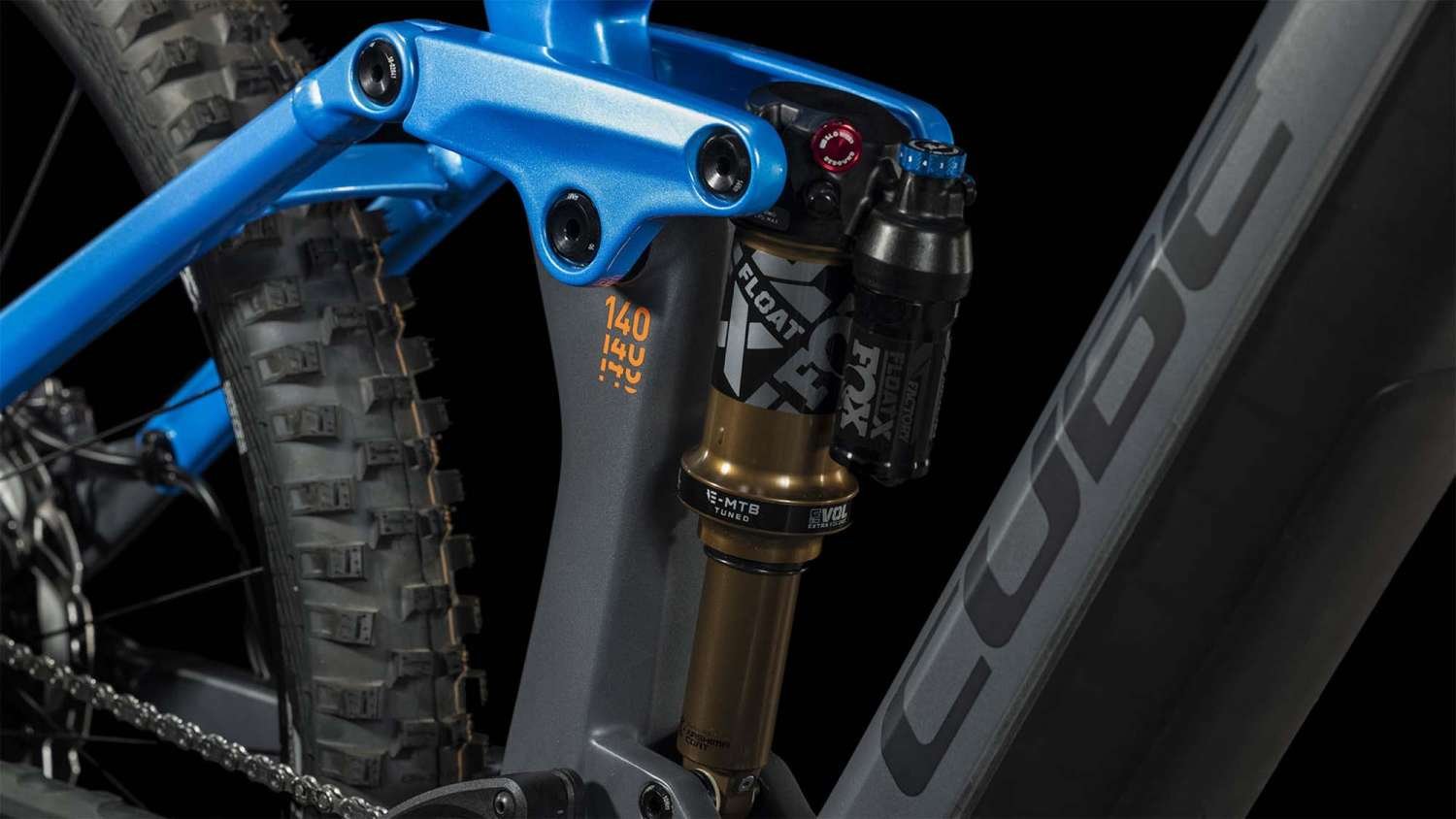

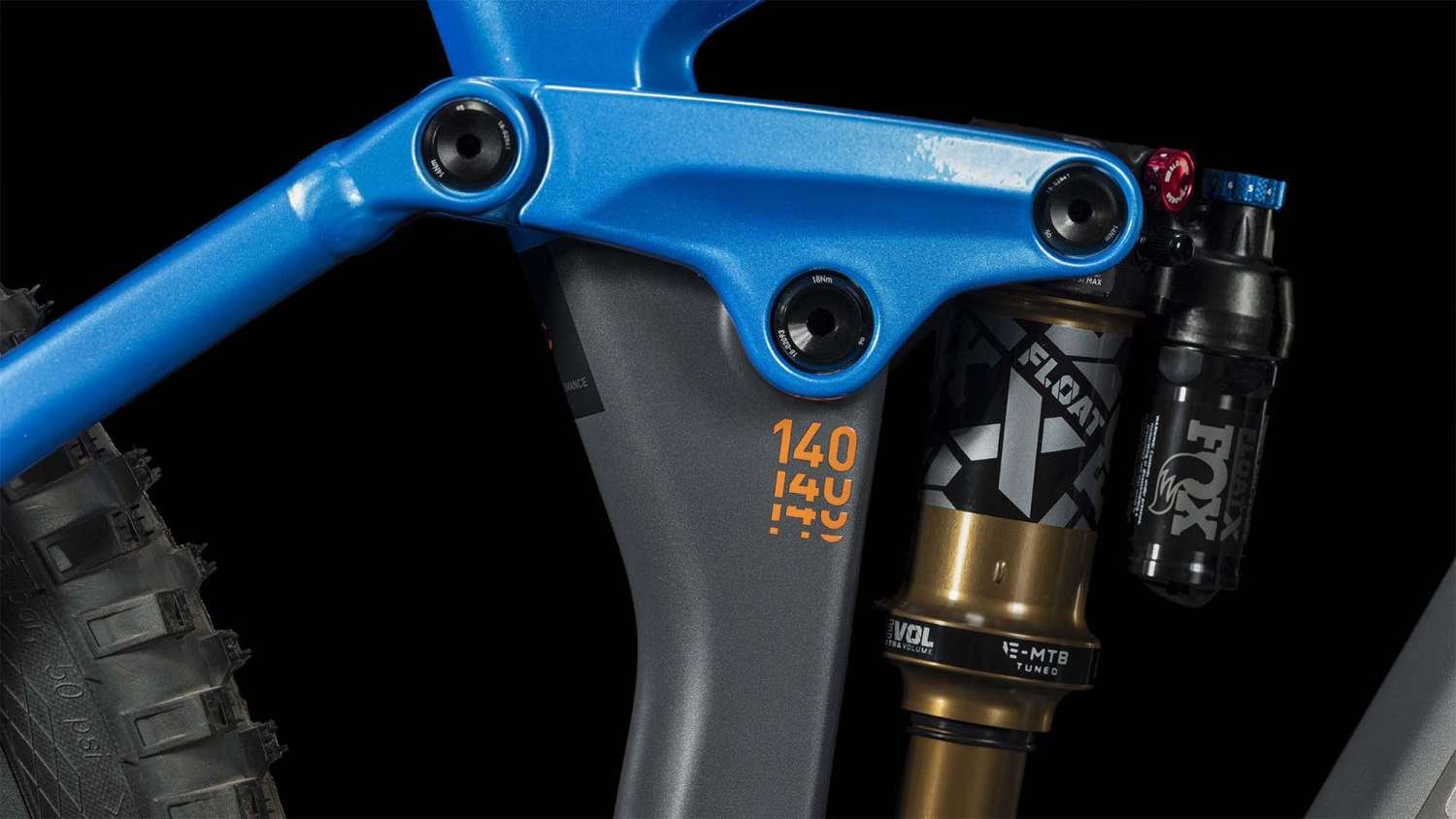

Shock absorber: Fox Float X Factory, 205x60mm (27.5: 185x55mm), LSC adjustment with 2-position lever, Trunnion mount, Kashima treatment
Shock absorber hardware: Upper: Trunnion 54mm / Lower: 22.2x8mm
Headset: ACROS AZF-1035, ICR, BlockLock 120°, Zero-Stack 1 1/2” (ZS 56mm)
COMPONENTS
- Handlebar stem: CUBE Performance Stem E-MTB, 31.8mm
- Handlebar: Newmen Advanced 318.25, carbon, 780mm
- Grips: ACID Disrupt, soft compound

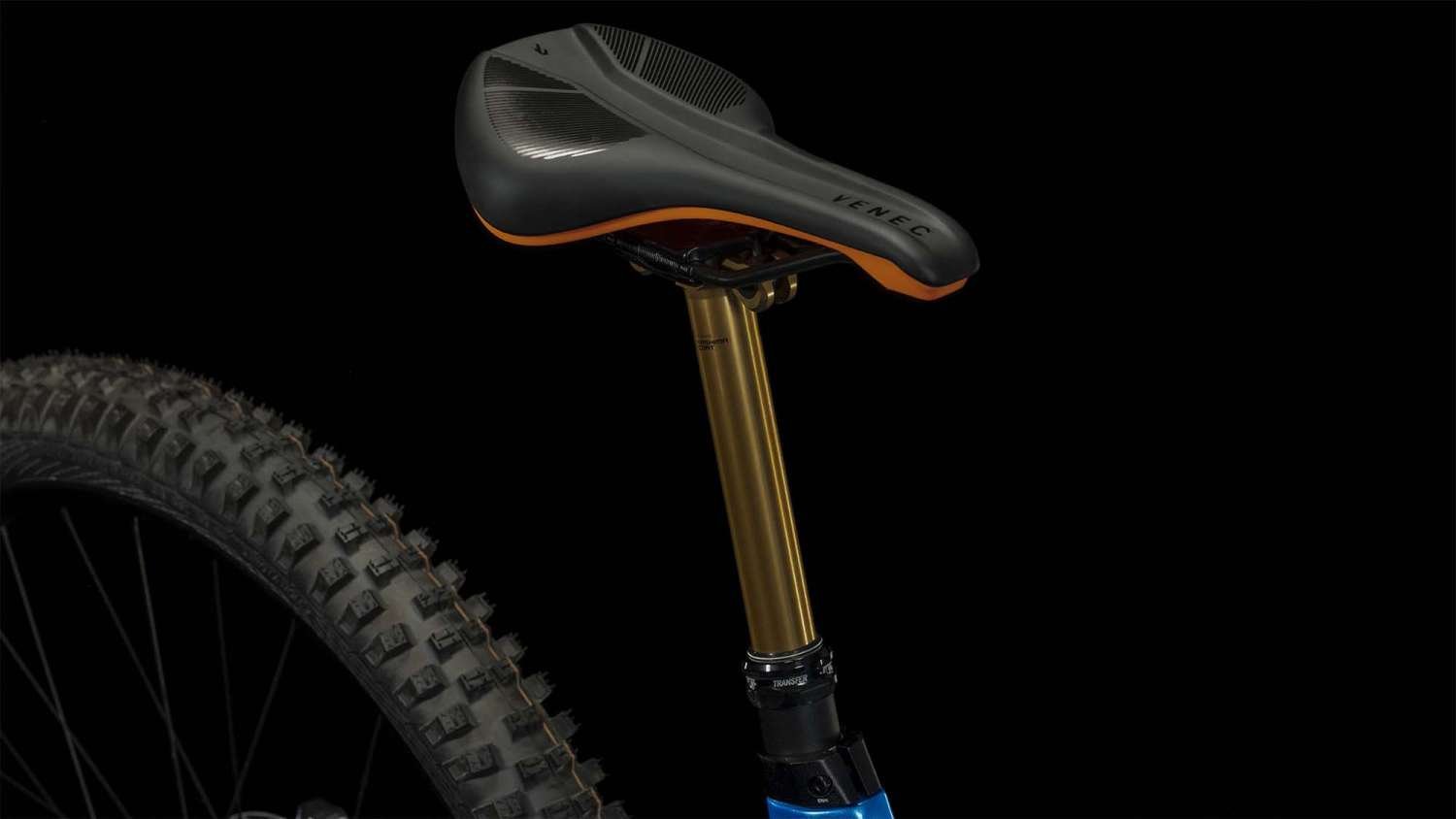

- Saddle: Natural Fit Venec
- Seatpost: Fox Transfer Factory, 31.6mm, Kashima treatment
- Seat clamp: CUBE Screwlock Semi Integrated, 34.9mm
DRIVETRAIN
- Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-speed
- Shift lever: Shimano XT SL-M8100-IR, Direct Attach
- Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount GEN4 attachment
- Crankset: e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)
- Cassette: Shimano XT CS-M8100, 10-51T
- Chain: Shimano XT CN-M8100
ELECTRICAL SYSTEM
- Motor: Bosch Performance CX Gen 4 (85Nm), Cruise, 250W, Smart System
- Battery: Bosch PowerTube 750Wh
- Battery charger: Bosch 4A
- Control: Bosch LED Remote
- Display: Bosch Kiox 300
WHEELS
- Wheels: Newmen Evolution SL E.G. 30, 28 spokes front/rear, Tubeless Ready
- Front hub: 15x110mm
- Rear hub: 12x148mm
- Tires
- Front: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
- Rear: Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4
BRAKES
- Brakes: Shimano XT BR-M8120, hydraulic disc brakes, 203/203 mm discs
OTHER
- Weight: 24.2 kg
- Frame material: Carbon
- User: Unisex
- Model year: 2023
- Display: Bosch Kiox 300
- Bike type: E-MTB, full suspension
- Available sizes:
- 16″ (S) / Height: 160–168 cm
- 18″ (M) / Height: 168–178 cm
- 20″ (L) / Height: 178–188 cm
- 22″ (XL) / Height: over 188 cm
